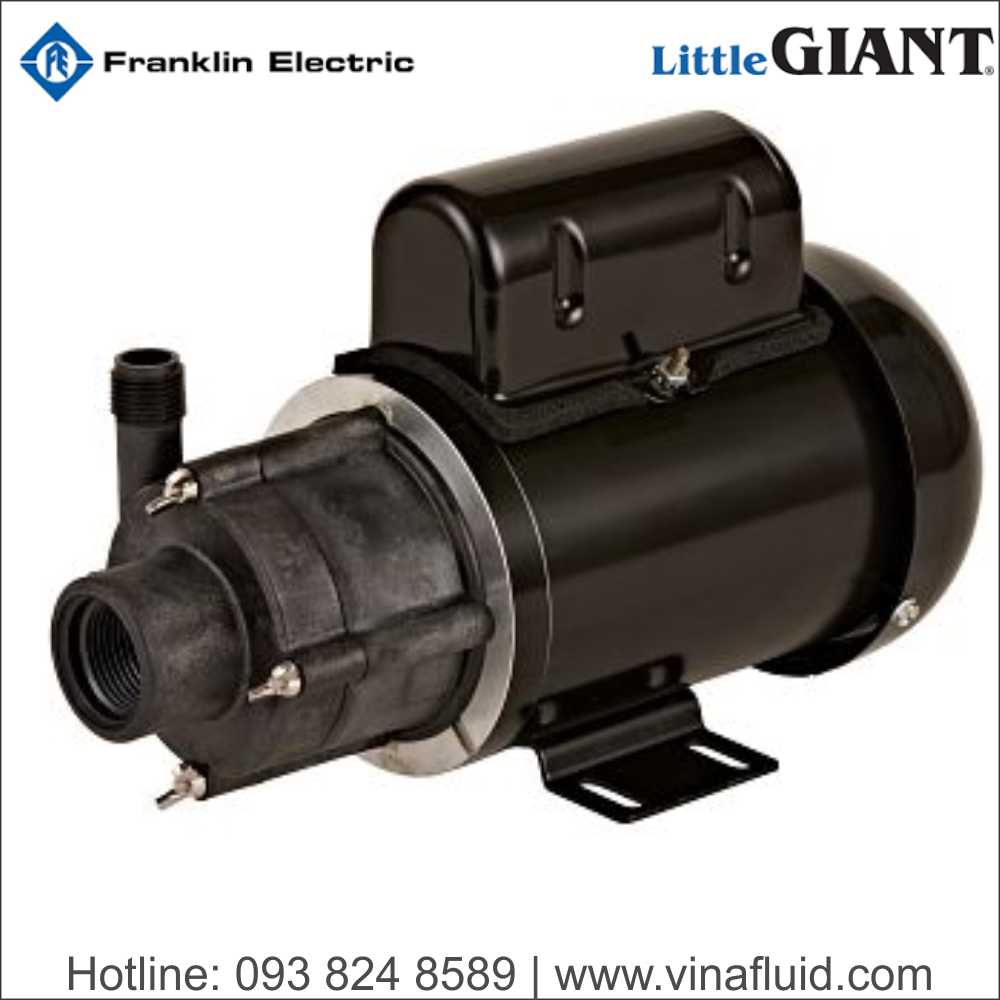

Little Giant Chemical Magnetic Drive Pump TE-5-MD-HC

Little Giant Chemical Magnetic Drive Pump TE-5-MD-HC is used as a non-submersible or in-line pump for circulating highly corrosive acids, alkalis, solvents, brine, plating solutions, sterile solutions, and other highly corrosive chemicals and solutions compatible with the pump’s material of construction.

Brochure: Brochure bơm hóa chất dẫn động từ Little Giant TE-5-MD-HC

Little Giant Chemical Magnetic Drive Pump TE-5-MD-HC Features & Benefits

• 1/8 hp TEFC PSC motor
• Glass-filled polyphenylene sulfide magnet housing and volute
• 1.1 specific gravity
• Fluoroelastomer (FKM) O-ring
• Ceramic thrust washers and shaft
• Run dry capability up to 8 hours

Specifications

Magnetic Pump Capacity: 20 gpm @ 1′
Shut Off: 29.3′ (8.9 m)
Max. Liquid Temp. 200 °F (93.3 °C)
Discharge 1/2″ MNPT (12.7 mm)
Impeller Glass-filled polyphenylene sulfide w/ carbon bushing
Electrical 115 V, 50/60 Hz, 2.3/3 A
230 V, 50/60 Hz, 1.3/1.4 A
